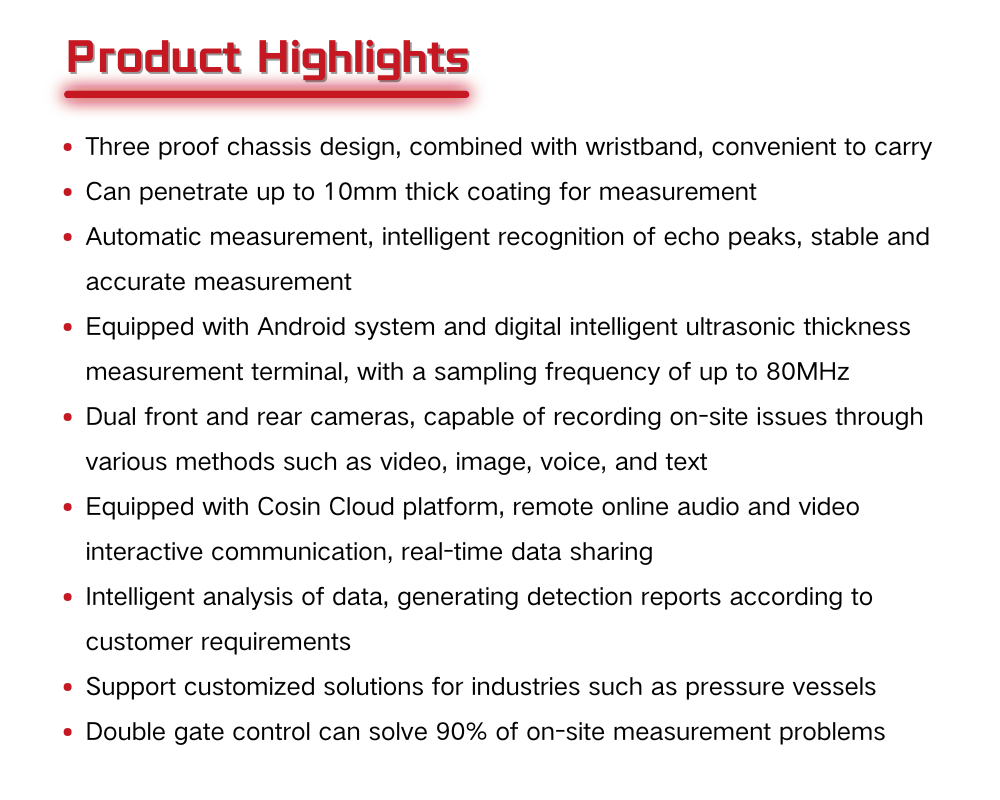

一、Instrument Features：
KODIN 3C-HC series ultrasonic thickness gauge is an intelligent detection terminal built by KETI based on Internet technology.
This instrument is based on the Android system and can customize testing plans according to on-site operations and industry standards; This instrument has wireless communication function and can achieve remote audio and video data exchange;
This instrument can achieve real-time expert diagnosis, remote data detection and other functions through cloud servers;
This instrument incorporates industrial design concepts, and the casing design follows ergonomics and conforms to industrial site operating habits. The casing protection adopts waterproof, dustproof, and anti drop design to adapt to complex sites.
二、Technical Specifications：
Optional measurement modes: A-scan mode, B-scan mode, numerical mode
Measurement range (45 # steel): 0.65~500mm (choose specific probe according to the range)
Speed range: 1000~9999m/s
Display digits: four digits
Indication accuracy: 0.1mm (low accuracy) 0.01mm (high accuracy)
Measurement error (H is the measured thickness value):
Low precision: H<10mm ± 0.1mm H>=10mm ± (0.1+H/100)
High precision: H<10mm ± 0.05mm H>=10mm ± (0.01+H/200)
Gain: 6dB to 55dB
Gate: 1-50
Probe frequency: 2MHz-10MHz
Optional probe:
Ordinary probe PT-08 (steel: 0.8-200mm)
Ordinary probe PT-06 (steel: 0.65-150mm)
Ordinary probe PT-04 (steel: 0.8-50mm)
Ordinary probe PT-10 (steel: 0.8-200mm)
High temperature probe GT-12 (steel: 1.5-200mm)
Cast iron probe ZT-12 (steel: 3-500mm)
Echo probe E-E10 (in E-E mode, steel: 2.0-130mm, maximum penetrable coating thickness is 10mm; in T-E mode, steel: 1.2-200mm)
Display mode: 3.97-inch IPS color screen, 800 * 480 pixels
Data interface: wireless communication, USB
Data report: charts, images, bar charts
Display language: Chinese, English
Button light: turn on and off backlight
Shutdown method: physical button shutdown, software APP shutdown
Protective design: dustproof, waterproof, and anti fall
Usage environment: Relative humidity: ≤ 90%; Temperature: -10 ℃~+40 ℃
Working time: about 6 hours (under low backlight brightness)
Power supply: Built in 3000mAh lithium-ion polymer battery
Host size: 161mm (L) * 73mm (W) * 21mm (H)
Whole machine weight: approximately 261g (excluding probe)
三、Site of use：
四、Standard product packing list：
1. 1 KODIN 3C-HC series host
2. 1 calibration block
3. Probe (E-E10) 1 unit
4. Room temperature coupling agent (50g) 1 bottle
5. 1 set of charger and charging cable
6. 1 user manual
7. 1 warranty card
8. 1 certificate of conformity
9. 1 suitcase
10. 1 SIM card pin
11. Sample (thickness mm) 1 piece
Optional accessories:
1. Step test block 1 piece
2. High temperature, cast iron, small diameter probes, etc
3. High temperature coupling agent
4. 1 screen film
5. 1 set of wrist instrument clip
-
